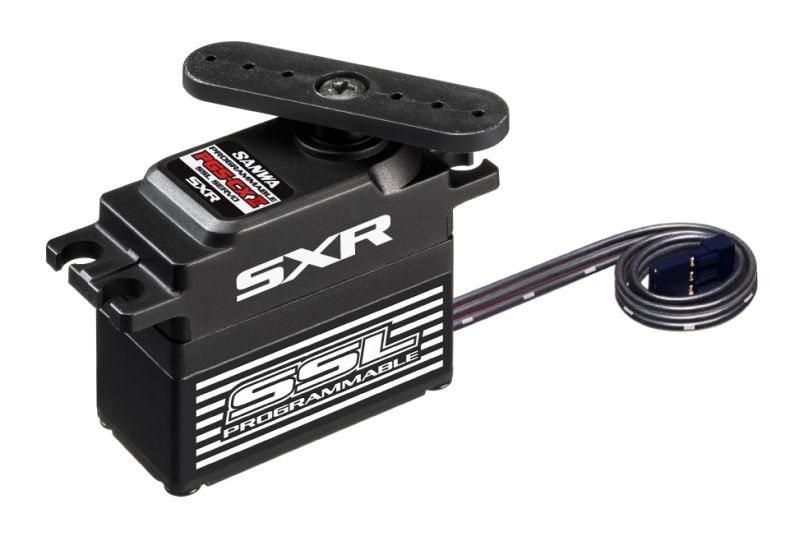

PGS-CX2 SXR High Power Brushless Torque Servo (High Voltage)
- Kompletní specifikace
- Hodnocení 0
PGS-CX2 SXR High Power Brushless Torque Servo (High Voltage)Není skladem2 099 Kč1 735 Kč bez DPH
Kompletní specifikace
Digitální programovatelné HiVolt standard servo s Brushless (střídavým) motorem a kovovými převody, 2x kuličkové ložisko, 23,3/26.5kg při 6,0/7,4V a 0,11/0,13s na 6,0/7,4V, váha 59,0g, 40,2x20,5x37,2mm. Provozní napětí 4,8 - 8,4V.
Specifications:
Features:
- Programmable Servo to be compatible with SSL & Telemetry
- Setting Adjustment by wireless from Radio
- Setting Adjustment to connect Servo with Multi Setting Gear
- Regarding Temperature, Current, Voltage and Volume Position on Servo inside, telemetry-transmission can be passed to Radio
- Multi Setting Gear compatible
- SSR mode compatible
- SHR mode compatible
- Lipo 2 cell battery compatible
- High torque type
- Coreless motor
- Metal Gears
- AL Heat Sink
- # Initial Setting on Multi Setting Gear is necessary.
Specifications:
- Speed0.11 sec./60°(7.4V); 0.13sec./60°(6.0V)
- Torque 26.5 kg/cm (7.4V); 23.3kg/cm (6.0V)
- Dimensions: 40.5x20.5x37.2mm
- Weight: 59g
- Setting items:
- SSL-CH (SSL Channel Setting)
- STRETC (Stretcher Adjustment)
- BOOST (BOOST Adjustment)
- D-Band (Dead Band Adjustment)
- MV-MID (Middle Torque Adjustment)
- MV-END (Later Torque Adjustment)
- BREAK (Break Adjustment)
- ◎MV-HOLD (Power Adjustment at whole area)
- ◎MV-FRQ (Feeling Adjustment at whole area)
- ◎MAX-PW (MAX Duty Adjustment)
